Hydraulic Cylinder Seamless Honed Steel Tube ST52 SCH40 50.8mm

Name: Hydraulic Cylinder Seamless Honed Steel Tube ST52 SCH40 508mm
Brand: Joyruns
Price: 1 USD

Buy cheap Hydraulic Cylinder Seamless Honed Steel Tube ST52 SCH40 50.8mm product

Brand Name : Joyruns

Model Number : 48*11

Certification : ISO9001

Place of Origin : Changzhou

MOQ : 2Tons

Payment Terms : L/C, T/T

Supply Ability : 2000Tons/Month

Delivery Time : 30days

Packaging Details : plastic packing, end caps, wooden box packing

OD size : 6mm to 114.3mm

Thickness : 1mm to 20mm

Standard : DIN2391, EN10305, EN10216, EN10210

Material : ST35, ST45, ST52

Type : Seamless cold drawning precision tube

Delivery State : +N, +NBK,+C,+BKS,+GBK

Contact Now

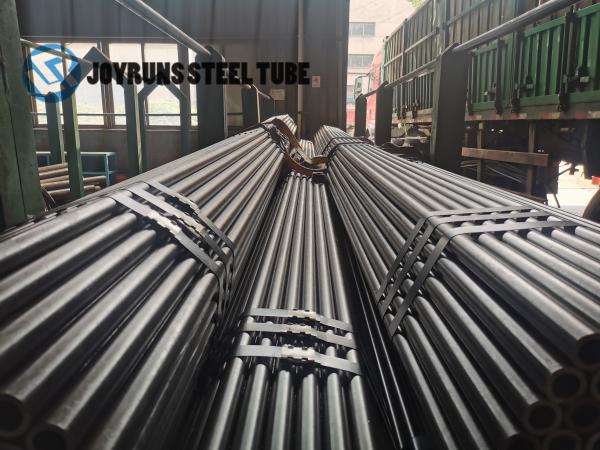

**Seamless Honed steel tube for hydraulic steel cylinder ST52 50.8mm * SCH40**

Hydraulic seamless tube process:
The preparation process comprises the following steps: A. ingot through smelting, refining, vacuum degassing, continuous casting round billet process, made of B tube blank; and into the lubricating liquid for dipping pretreatment; C, the blank is a pre-treated hotline, hot piercing; D, on the tube billet hot rolling punching the water; e, the seamless tube cooling after quenching and tempering process. Through the above-mentioned method, the seamless steel tube for the hydraulic steel cylinder and the preparation process can improve the performance of the steel pipe, the manufacturing process is simple, and the service life is long.

seamless steel tube for hydraulic steel tube, steel ingot material comprises the following components: C:15-30 parts by mass, Si:2-8, Mn:6-15, Cr:3-10, Al:20-40, Ti:1-5, V:1-10, Zr:1-8, Ca,10-20, B:0.8-5.5: H:0.1-0.5, Pm:0.02-0.2 and Sm:0.05-0.5 for the rest, Fe:300-1200 and 0.1-0.3 impurities.

All our technology innovation is only for one aim--- the best quality, even that means a higher cost and lower production rate.
1. Checking raw material before producing.
2. Checking one by one before the assembling
3. Checking one by one during the production
4. Have a random inspection before the delivery.

DIN 2391-1 Chemical Composition

Grade	Chemical Composition(%):
	C max	Si max	Mn	P max	S max
DIN 2391 St 35	0.17	0.35	≥0.40	0.025	0.025
DIN 2391 St 45	0.21	0.35	≥0.40	0.025	0.025
DIN 2391 St 52	0.22	0.55	≤1.60	0.025	0.025

DIN 2391 ST35 Mechanical Properties

Grade	BK		BKW		BKS			GBK		NBK
Grade	RmN/mm min	min	RmN/mm min	min	N/mm min	ReH N/mm min	min	N/mm min	min	N/mm min	ReH N/mm min	min
DIN 2391 St35	480	6	420	10	420	315	14	315	25	340-470	235	25
DIN 2391 St45	580	5	520	8	520	375	12	390	21	440-570	235	21
DIN 2391 St52	640	4	580	7	580	420	10	490	22	490-630	355	22

Hydraulic Cylinder Seamless Honed Steel Tube ST52 SCH40 50.8mm
